Product Summary

The AD8542ARZ is a dual rail-to-rail input and output, single-supply amplifier. It guaranteed to operate from a 2.7 V single supply as well as a 5 V supply.

Parametrics

Absolute maximum ratings: (1)Supply Voltage(VS):6V ; (2)Input Voltage:GND to VS; (3)Differential Input Voltage1:±6 V ; (4)Storage Temperature Range:-65℃ to +150℃; (5)Operating Temperature Range:-40℃ to +125℃ ; (6)Junction Temperature Range:-65℃ to +150℃ ; (7)Lead Temperature (Soldering, 60 sec):300℃.

Features

Features: (1)Single-supply operation: 2.7 V to 5.5 V ; (2)Low supply current: 45μA/amplifier ; (3)Wide bandwidth: 1MHz ; (4)No phase reversal ; (5)Low input currents: 4pA ; (6)Unity gain stable ; (7)Rail-to-rail input and output.

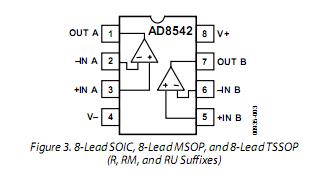

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD8542ARZ
AD8542ARZ

IC OPAMP GP R-R CMOS 1MHZ 8SOIC
Data Sheet
0-1: $0.68
1-10: $0.60
10-100: $0.48
100-250: $0.42
250-500: $0.37
500-1000: $0.29
1000-2500: $0.27
2500-5000: $0.26
AD8542ARZ-REEL
AD8542ARZ-REEL

IC OPAMP GP R-R CMOS 1MHZ 8SOIC
Data Sheet
0-2500: $0.27
AD8542ARZ-REEL7
AD8542ARZ-REEL7

IC OPAMP GP R-R CMOS 1MHZ 8SOIC
Data Sheet
0-1: $0.70
1-10: $0.62
10-25: $0.56
25-100: $0.49
100-250: $0.43
250-500: $0.38
