Product Summary
The LPC2368FBD100 Single-chip microcontroller is based on a 16-bit/32-bit ARM7TDMI-S CPU with real-time emulation that combines the microcontroller with up to 512 kB of embedded high-speed flash memory. A 128-bit wide memory interface and a unique accelerator architecture enable 32-bit code execution at the maximum clock rate. For critical performance in interrupt service routines and DSP algorithms, this increases performance up to 30 % over Thumb mode. For critical code size applications, the alternative 16-bit Thumb mode reduces code by more than 30 % with minimal performance penalty.
Parametrics
Absolute maximum ratings: (1)supply voltage (core and external rail): -0.5 V min and +3.6 V max; (2)analog 3.3 V pad supply voltage: -0.5 V min and +4.6 V max; (3)input voltage on pin VBAT: -0.5 V min and +4.6 V max; (4)input voltage on pin VREF: -0.5 V min and +4.6 V max; (5)input voltage: -0.5V min and +6.0V max; (6)supply current per supply pin: - 100 mA; (7)ground current per ground pin: - 100 mA; (8)torage temperature: -40 to +125 ℃.
Features
Features: (1)ARM7TDMI-S processor, running at up to 72 MHz.; (2)Up to 512 kB on-chip Flash Program Memory with In-System Programming (ISP) and In-Application Programming (IAP) capabilities. Flash program memory is on the ARM local bus for high performance CPU access; (3)8/32 kB of SRAM on the ARM local bus for high performance CPU access; (4)16 kB SRAM for Ethernet interface. Can also be used as general purpose SRAM; (5)8 kB SRAM for general purpose DMA use also accessible by the USB; (6)Dual AHB system that provides for simultaneous Ethernet DMA, USB DMA, and program execution from on-chip Flash with no contention between those functions. A bus bridge allows the Ethernet DMA to access the other AHB subsystem; (7)Advanced Vectored Interrupt Controller, supporting up to 32 vectored interrupts.

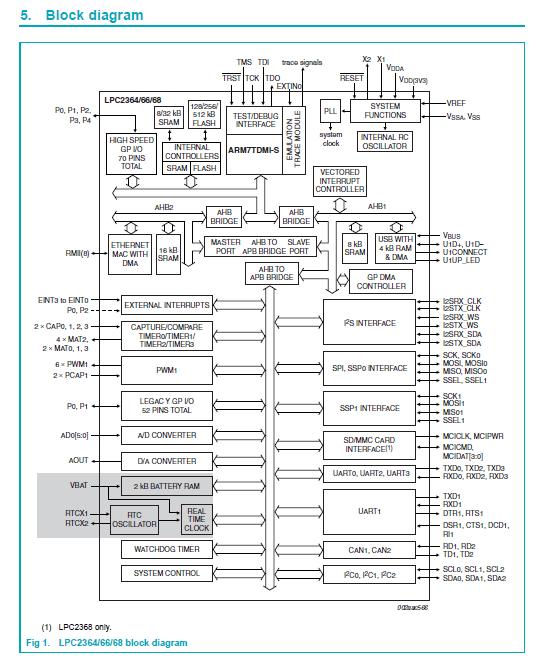

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LPC2368FBD100,551 |
NXP Semiconductors |
ARM Microcontrollers (MCU) ARM7 512KF/USB/ENET |
Data Sheet |
|
|
||||||||||||
